BIM Model Check

!BIM Model Check

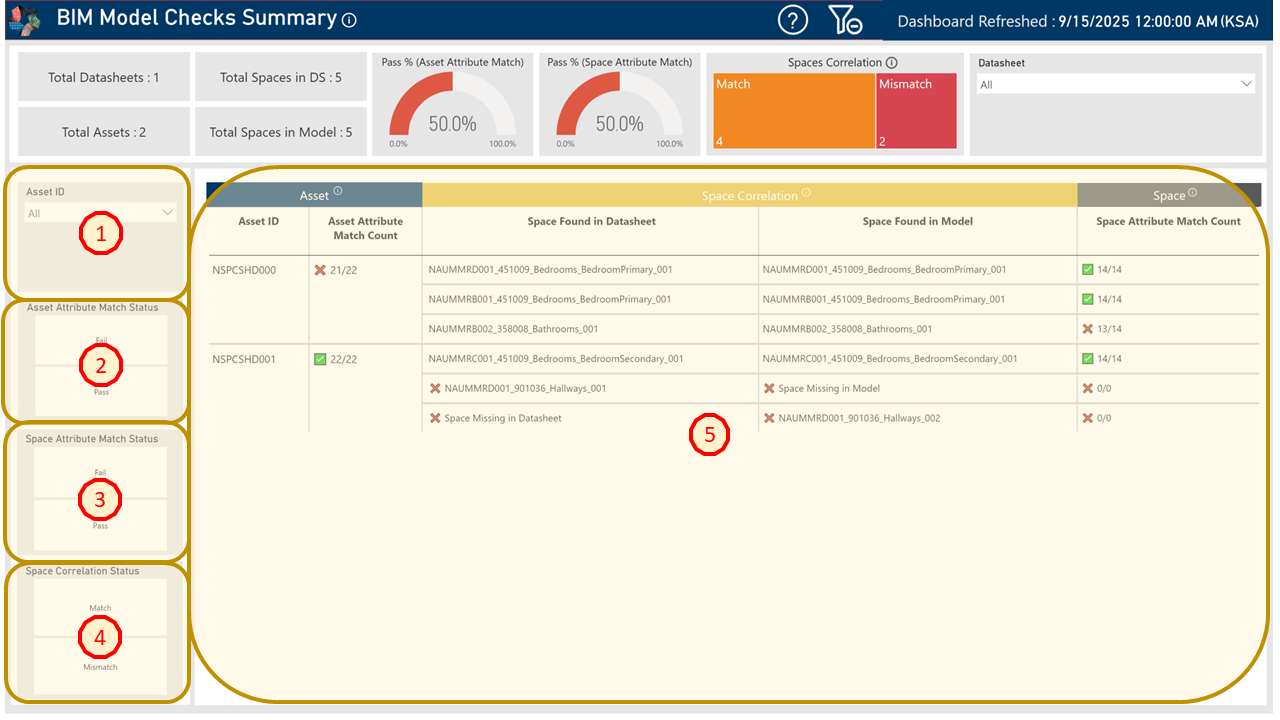

Fig. 1 - BIM Model Check

1. Asset ID

  • Ability to filter on a single or multiple Assets. The dashboard updates according to the selection made. Selection can be cleared by selecting the clear filter icon.

2. Asset Attribute Match Status

  • This section analyzes asset attributes to show whether they match between the datasheets and BIM Models
    • Fail – Selecting this card filters all asset attributes that failed to match between the BIM Model and the datasheets
    • Pass - Selecting this card filters all asset attributes that successfully matched between the BIM Model and the datasheets.
    • Selection can be cleared by selecting the clear filter icon.

3. Space Attribute Match Status

  • This section analyzes Space attributes to show whether they match between the datasheets and BIM Models
    • Fail – Selecting this card filters all Space attributes that failed to match between the BIM Model and the datasheets.
    • Pass - Selecting this card filters all Space attributes that successfully matched between the BIM Model and the datasheets.
    • Selection can be cleared by selecting the clear filter icon.

4. Space Correlation Status

  • This section analyzes Spaces to show whether they correlate (match) between the datasheets and BIM Models
    • Match - Selecting this card filters all Space Id’s that successfully correlate between the BIM Model and the datasheets.
    • Mismatch – Selecting this card filters all Space Id’s that failed to correlate between the BIM Model and the datasheets
    • Selection can be cleared by selecting the clear filter icon.

5. Model Analysis

  • Displays a table of detailed Asset and Space Attributes, showing which have passed ✅ (green tick) or failed ❌ (red cross) when matched against the datasheets and BIM Models.
    • Asset – This section displays Asset Id’s and their Asset Attributes showing which have passed ✅ (green tick) or failed ❌ (red cross) when matched against the datasheets and BIM Models
    • Space Correlation - This section presents Spaces defined between submitted datasheets and associated models that are related to the Parent Asset Id.
    • If a space is missing in either source (Datasheet or Model), a red cross will be presented along with the description of the space or a message saying ‘Space Missing’ displayed on the source in question.
    • Space - This section displays information specific to Spaces, showing the count of attributes matching between submitted models and associated datasheets.
